0.12Hp 0.09Kw 3 Phase Induction Motor For Commercial Roaster

Name: 012Hp 009Kw 3 Phase Induction Motor For Commercial Roaster
Brand: ZOZHI
Price: 28.3 USD

China 0.12Hp 0.09Kw 3 Phase Induction Motor For Commercial Roaster wholesale

Brand Name : ZOZHI

Model Number : MS562-4

Certification : CE,ISO

Place of Origin : FUAN CHINA

MOQ : 1pc

Price : $28.3~$45.5

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden case.

Product Name : 3 Phase Induction Motor

Application : Drivng

Power : 0.09KW/0.12HP

Pole : 4

Phase : Three phase

Housing : Aluminum

Insulation Class : F

Protection : IP55

Rated voltage : 380V

Duty : S1(continuous)

Flange Size : B14

Contact Now

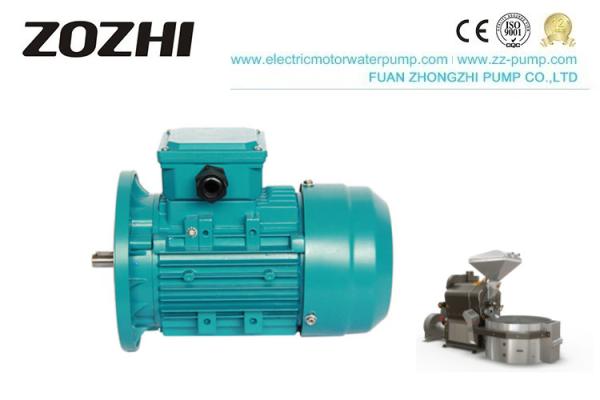

0.09Kw/0.12Hp 3 Phase Induction Motor For Commercial Roaster

3 Phase Induction Motor

Model: MS562-4

Power: 0.09KW/0.12HP

Flange size: B14

1) MS series motors are enclosed fan cooling three-phase squirrel cage induction motors. It adopts the latest design and high-quality material and conforms to the IEC standard.

2) MS series motor has many advantages, including high efficiency, energy saving, high starting torque, low noise, little vibration, lightweight, reliable and convenient operation, easy maintenance, etc.

3) The motor has removable feet made of aluminum alloy die casting. Users could be mounting variously according to their needs.

4) These series motors fit common sites and concise machines with no special requirements, including an air compressor, pump, fan, medical apparatus and instruments, small machines, etc.

Application:

0.12Hp 0.09Kw 3 Phase Induction Motor For Commercial Roaster

Reviews from the client:

0.12Hp 0.09Kw 3 Phase Induction Motor For Commercial Roaster

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

0.12Hp 0.09Kw 3 Phase Induction Motor For Commercial Roaster

3 Phase Induction Motor

Technical data

Model	Power		(V)	(HZ)	Current (A)	Power Factor	Eff (%)	Speed (r/min)	Tstart/ Tn	Tmax/ Tn	Ist/ In
	HP	KW
MS561-2	0.12	0.09	380	50	0.3	0.76	60	2750	2.3	2.4	6
MS562-2	0.16	0.12			0.37	0.78	63	2750	2.3	2.4	6
MS631-2	0.25	0.18			0.53	0.75	69	2800	2.2	2.4	4.5
MS632-2	0.33	0.25			0.68	0.78	72	2800	2.2	2.4	4.5
MS711-2	0.5	0.37			0.98	0.8	73	2800	2.2	2.4	4.5
MS712-2	0.75	0.55			1.35	0.82	75	2800	2.2	2.4	4.5
MS801-2	1	0.75			1.75	0.85	76	2800	2.2	2.4	4.5
MS802-2	1.5	1.1			2.55	0.85	77	2800	2.2	2.4	4.5
MS90S-2	2	1.5			3.36	0.87	78	2800	2.2	2.4	4.5
MS90L-2	3	2.2			4.93	0.87	78	2800	2.2	2.4	5
MS100L-2	4	3			6.31	0.87	83	2880	2.3	2.4	7
MS112M-2	5.5	4			8.12	0.88	85	2890	2.3	2.4	7
MS132S1-2	7.5	5.5			11	0.88	86	2900	2.3	2.4	7
MS132S2-2	10	7.5			14.9	0.88	87	2900	2.3	2.4	7
MS160L-2	25	18.5			34.7	0.9	90	2930	2.3	2.4	7
MS561-4	0.08	0.06			0.27	0.68	50	1300	2.2	2.3	5.5
MS562-4	0.12	0.09			0.36	0.7	54	1300	2.2	2.3	5.5
MS631-4	0.16	0.12			0.48	0.63	60	1400	2.2	2.4	4.5
MS632-4	0.25	0.18			0.65	0.66	64	1400	2.2	2.4	4.5
MS711-4	0.33	0.25			0.83	0.68	67	1400	2.2	2.4	4.5
MS712-4	0.5	0.37			1.12	0.72	69	1400	2.2	2.4	4.5
MS801-4	0.75	0.55			1.56	0.73	73	1400	2.2	2.4	4.5
MS802-4	1	0.75			2.01	0.75	75	1400	2.2	2.4	4.5
MS90S-4	1.5	1.1			2.83	0.78	76	1400	2.3	2.4	5
MS90L-4	2	1.5			3.84	0.78	76	1400	2.2	2.4	5
MS100L1-4	3	2.2			4.2	0.75	75	1400	2.2	2.4	5
MS100L2-4	4	3			6.78	0.82	82	1410	2.3	2.4	7
MS112M-4	5.5	4			8.82	0.82	84	1435	2.3	2.4	7
MS132S-4	7.5	5.5			11.8	0.83	85.5	1445	2.3	2.4	7
MS132M-4	10	7.5			15.6	0.84	87	1445	2.3	2.4	7
MS711-6	0.24	0.18			0.74	0.66	56	900	2	2.2	5.5
MS712-6	0.33	0.25			0.95	0.68	59	900	2	2.2	5.5
MS801-6	0.5	0.37			1.3	0.7	62	900	2	2.2	5.5
MS802-6	0.75	0.55			1.79	0.72	65	900	2	2.2	5.5
MS90S-6	1	0.75			2.29	0.72	69	910	2.1	2.2	5.5
MS90L-6	1.5	1.1			3.18	0.73	72	910	2.1	2.2	5.5
MS100L-6	2	1.5			3.89	0.76	76	940	2.1	2.2	5.5
MS112M-6	3	2.2			5.57	0.76	79	940	2.2	2.3	6.5
MS132S-6	4	3			7.4	0.76	81	960	2.2	2.3	6.5
MS132M1-6	5.5	4			9.75	0.76	82	960	2.2	2.3	6.5
MS132M2-6	7.5	5.5			12.9	0.77	84	960	2.2	2.3	6.5
